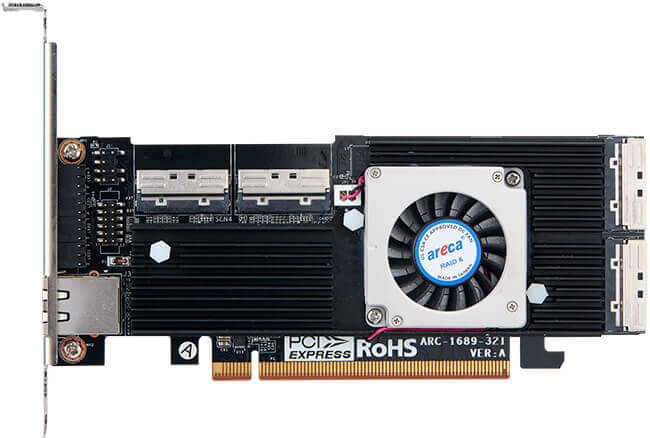

                ARC-1689-32I













                GALLERY




                Clicca sull'immagine per ingrandire la gallery















                        SCHEDA PRODOTTO




                        Cod./Produtt.: ARC-1689-32I/ARC-1689-32I

                        Produttore: Areca

                        Descrizione: NVMe RAID Controller (Internal) PCI-e x16 5.0, up to 8x4, 16x2 and 32x1 NVMe SSD, no Cache, 4x MCIO x8, PCIe Switch Chip	PLX89048 Gen5 48 lanes -  Raid 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOF










                        SPECIFICHE TECNICHE






	✵ Supports up to 4x MCIO ports (dedicated PCIe Gen5 x8 per MCIO)



	✵ Connection for up to 8x4, 16x2 and 32x1 NVMe SSD connect via direct cable or back/mid-plane



	✵ PCIe 5.0 host interface, PCIe Gen5 x16 lanes at maximum transfer rate up to 512Gb/s



	✵ Delivers high-speed performance with speeds of 60GB/s



	✵ True hardware RAID protection for all valueable data



	✵ Hardware-based RAID solution that supports RAID levels RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk(Single/Dual/Triple) or JBOF/AIC Mode



	✵ SED support for hardware NVMe encryption capable drives



	✵ Support for UEFI secure boot



	✵ Redundant flash image for adapter availability



	✵ Hardware secure boot ready



	✵ In-box NVMe driver support for Windows, Linux, FreeBSD and VMware



	✵ Support slot link control capabilities, link status and error count monitoring



	✵ Flexible reconfiguration downstream station port widths:x1,x2,x4,x8 and x16 via GUI(update to ARC-1289-32I firmware)













				PCIe Gen 5.0 x16 Fastest and Reliable NVMe Solution





				Model Name

				ARC-1689-32I H/W RAID Adapter

				ARC-1389-32I Switch Adapter





				Form Factor

				LP-MD2 : 64.41(H) x 167.65(L) mm





				PCIe Switch Chip

				PLX89048 Gen5 48 lanes /High-performance H/W RAID engine





				Host Interface

				PCIe Gen5 x16 Lanes





				Device Connector

				MCIO[x8] Connector





				Max NVMe Support

				up to 8x4, 16x2 and 32x1 NVMe SSD Connection





				Device Interface

				PCIe Gen 5.0 x4 (NVMe)





				RAID Level

				0, 1 (Simple/Multi Mirroring), 10,

				Single Disk (Single/Dual/Triple)

				or JBOF

				N/A (W/O RAID function on GUI)





				Management Port

				In-Band: PCIe/Out-of_Band:Lan Port





				Device Driver

				In-box (Native) NVMe Driver





				Software Package

				Same as ARC-1886 Tri-Mode Adapter





				Power Consumption

				Worst Case: 23.7 Watts, Typical: 18 Watts
