SCHEDA CONFIGURAZIONE
Codice: MT0001-00F
Produttore: SHARE
Descrizione: Micro Tower, Xeon D-1739, 4x3,5'' Hot Swap, up 256GB DDR4, 2xGbE, 4 x SATA3, IPMI with LAN, Fixed HDD 2x 2,5'', Exp. Slot: 1 PCIe x16 Gen 4, 1xM.2 PCIe, Single 650W 80 PLUS Gold


SPECIFICHE TECNICHE

Intel Xeon D-1700 Processors

Intel Xeon D-1700 processors with the highly integrated design is packaged as a system-on-chip (SoC) based on a ball grid array (BGA) package, which are designed for provisioning dense compute at the edge that balances high computational throughput with low thermal design power (TDP). High per-core performance, advanced security features, and built-in hardware acceleration for crypto, AI, and compression support the requirements of demanding workloads within a density-optimized platform.

The platform that are optimized for edge computing and other distributed environments are enabling the push of data center resources outward, for implementations and use cases such as:

Networking

including gateways and routers, security appliances, and storage



5G Topologies

including C-RAN and D-RAN architectures



Security

including Secure Access Service Edge (SASE)



IoT

including smart operations



Key Features
per system
Entry Level Virtualization
Basic Storage Server
Form Factor W x H x D : 310 x 200 x 270 mm
Drive Bays ext -
Drive Bays int 2 x 2,25"
HDD 4 x 3,5"/2,5" SAS3/SATA (12G) Hot Swap
Power Supply 650W Single PSU Gold Level
Rail Kit -
Processor up to 1 Intel® Xeon® D-1739
Chipset System on Chip
Memory slots 4 x DDR4 2933 MHz. ECC Reg
Expansion slots 1 PCI-E 5.0 x16
Controller Optional via AOC
NVMe Ports 1x M2 PCIe 3.0 x4
Remote Management 1 x shared LAN with IPMI
LAN On-Board 2 x Gigabit Ethernet ports (RJ45)
Input/Output 1 USB 3.2, 1 VGA, 1 COM port
Garanzia 3 anni On-center - (Estensione a 3 anni ON-SITE opzionale)

CONFIGURAZIONE COMPONENTI Appliance
Cat / Sottocat Prodotto Quantità
Chassis
MINI SERVER Tower, 4X3,5" Hot Swap 12G SATA/SAS (1 x MiniSAS HD sff-8643 Connector),120mm fan,BK, w/o PSU (utilizza Standard ATX PSU)
1
Power Supply Unit
ALIM. LC-POWER 650W, 120mm, 20+4 pin, 2x 4+4 pin, 6x PCIe, 10x SATA, 5x PATA, 80 Plus Gold, DC-to-DC, fully modular cable management, flat cables
1
Piattaforma

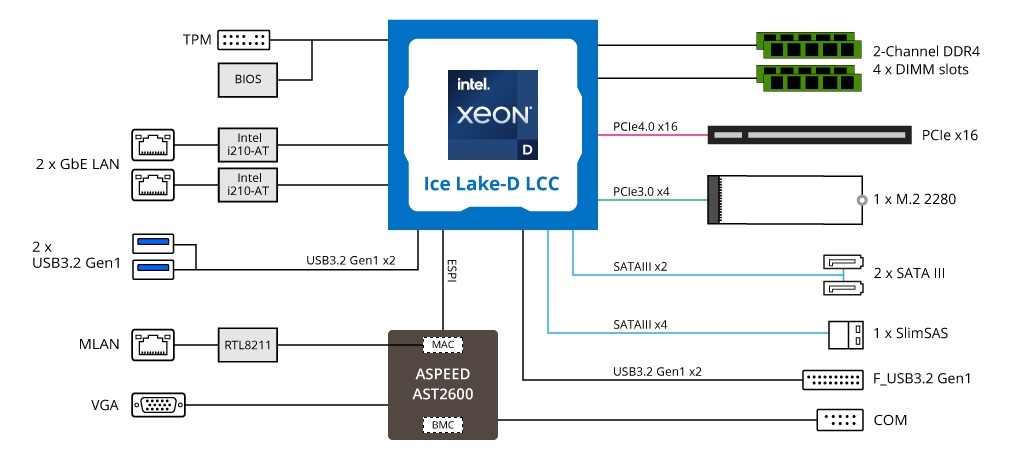

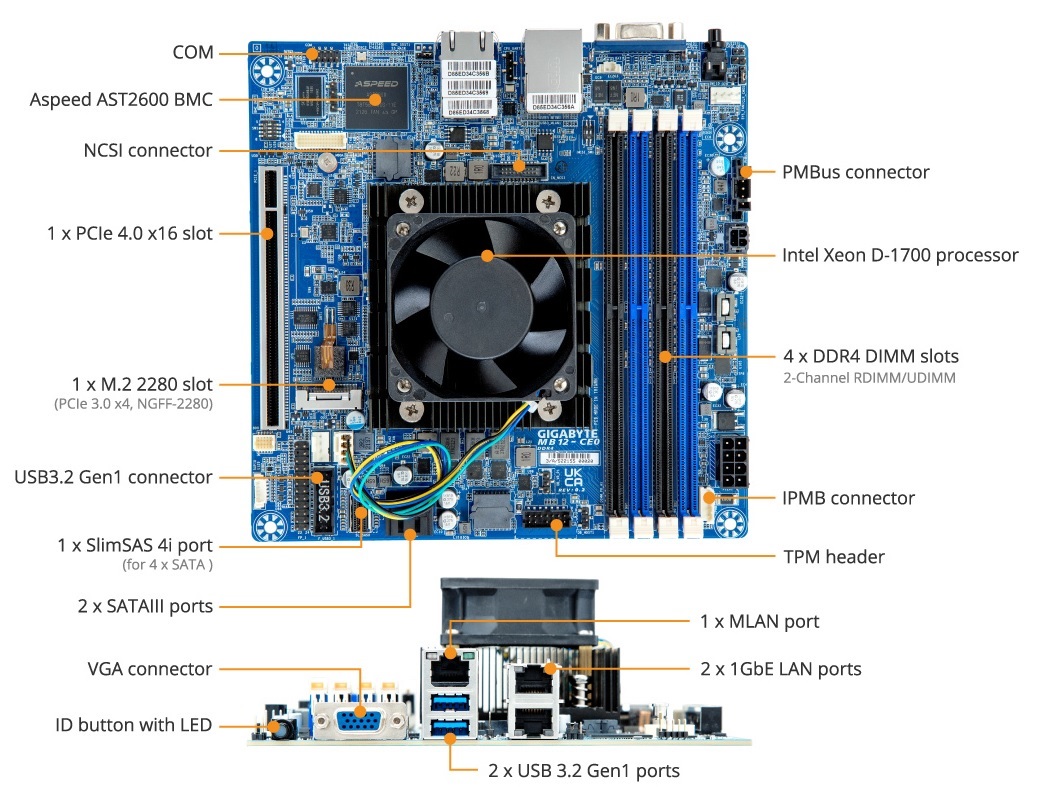

MB - Xeon Intel Xeon D-1739, up to 4xDDR4 2933MHz ECC REG, PCIe: 1(x16), 1 M2 NVME, LAN: 2,5RJ45 (I210), 6xSATA3 Raid 0, 1, 5, 10, VGA, LAN management, Aspeed AST2600, mini-ITX
1
Memoria 16GB DDR4-3200 ECC REG 1
Consulta le note di configurazione
